S39 Thru Tubing Motor
Oil Sealed Reliability and Controllable Fluid Bypass

S39 Thru Tubing Motor
Oil Sealed Reliability and Controllable Fluid Bypass

The Wenzel S39 oil sealed thru tubing motor is designed for use with the latest developments in high torque / high speed power sections. Its small diameter, high flow rate and solid, robust connections make it ideal for your coil tube drilling and workover operations.

  • Innovative, fit-for-purpose design built on trusted Wenzel technology
  • Oil sealed bearing packs kept isolated from drilling fluid and debris
  • Ported-piston housing balances pressure drops and increases reliability
    • Optional jetted or sealed ports further control bypass (or eliminate it altogether)
  • Thrust and radial bearing technology custom-designed for thru tubing applications
  • Large internal mandrel and robust connections allow for high torque and performance
  • Thru tubing optimized driveline shortens overall length of motor
  • Optional full flex, hybrid flex or straight drivelines
  • Optional all-metal power sections

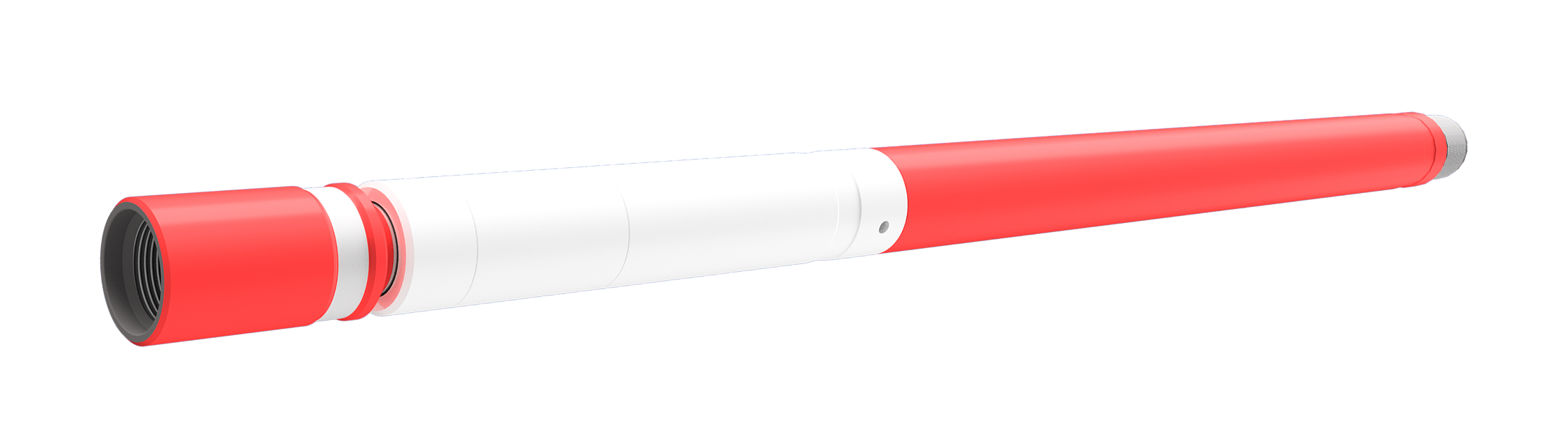

Its small diameter, high flow rates and solid, robust connections make our S39 motor ideal for your coil tube drilling and workover operations.

Thru Tubing Motors

While small in diameter, our thru tubing motor designs provide coiled tube drillers with the same Wenzel reliability, durability and performance as their larger downhole motor cousins.

Oil Sealed Bearing Assemblies

As the name suggests, oil sealed bearing assemblies separate moving parts from drilling fluid in a sealed oil-lubricated assembly. This design keeps cuttings and debris out of bearings to improve reliability and reduce service costs.

Accessories and Customization

Wenzel Downhole Tools M40 mud lubricated bearing assembly with hybrid flex shaft driveline

Different formations, depths and prognoses make a one-size-fits-all approach to drilling tools impossible. Outfit your motor with the housings, driveline, bend and connections that you need for success.
