What is a Micro-Vu Sol?

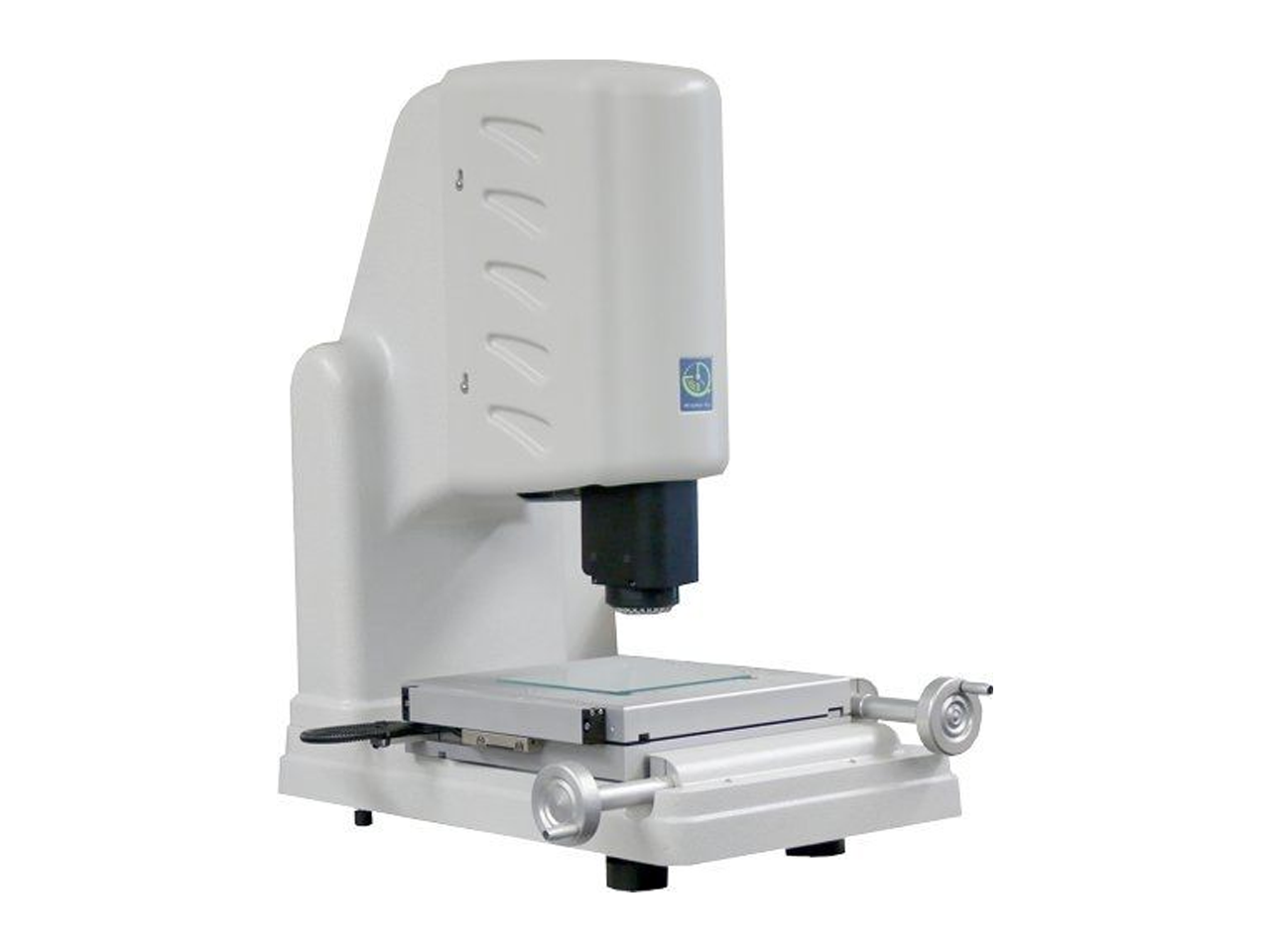

The Micro-Vu Sol is a semi-automated, ultra-precise optical measurement machine—part of Micro-Vu’s Sol series (models 165, 341, 342). It fills the gap between traditional manual inspection and fully automated coordinate measuring machines (CMMs), combining high-resolution imaging, programmable zoom, advanced lighting, and intuitive software into a compact tabletop system.

Why is an optical comparator important in CNC machining?

• Precision and reliability: Thanks to a programmable 19.5× zoom lens (combining 6.5× optical with 3× digital zoom), proprietary edge detection, and non-linear optics and stage compensation, the Sol delivers rapid, highly accurate 3D measurements.
• Speed and efficiency: Operators can quickly measure parts via intuitive point-and-click workflows using InSpec Metrology Software, dramatically reducing inspection time compared to tactile probing.
• Enhanced visual clarity: With multi-ring, multi-sector programmable lighting and a high-resolution color camera, the Sol offers vivid imagery and contrast—even on complex or colored parts.
• Consistency and quality control: Features like automated lighting calibration, aliasing-free zoom, and repeatable part-program capability support tight quality control and reproducible results.

Why choose a machine shop equipped with a Micro-Vu Sol?

• Superior accuracy: The Sol achieves exceptional repeatability, with linear resolution down to 1 µm and measurement accuracies in the range of 2–4 µm depending on geometry.
• Faster throughput: Automated imaging, lighting, and software-driven workflows mean parts are measured—and passed—from inspection to production more quickly than with traditional methods.
• Cost-effective quality assurance: By offering advanced capabilities traditionally found in fully robotic systems, the Sol delivers excellent measurement power at a lower cost and footprint.
• Easy to use, easy to integrate: With InSpec’s user-friendly interface, point-and-click measurements, and program compatibility, there’s minimal training required, and measurement routines seamlessly transfer between Sol and automated systems.
