Mori Seiki DuraTurn 2050MC
Mori Seiki DuraTurn 2050MC
What is the Mori Seiki DuraTurn 2050MC CNC lathe?
The Mori Seiki DURATURN 2050MC is a prominent CNC turning center renowned for its precision in producing complex parts.
Ideal for machining parts across a wide variety of industrial sectors, including but not limited to automotive, agricultural, aeronautics, defense and industrial automation. The machine is at its best when crafting components such as shafts and housings.

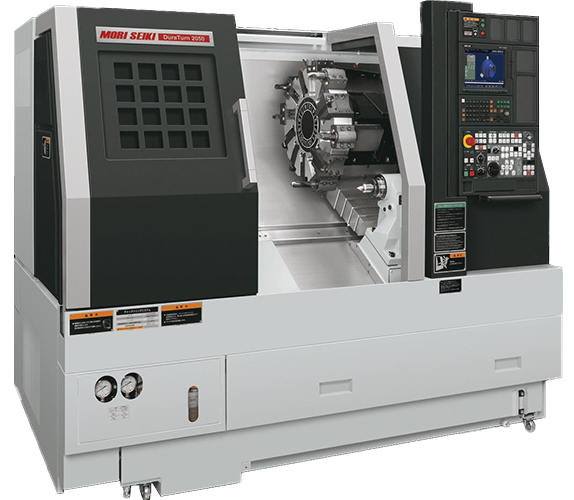

Built with advanced technology, it ensures high precision and reliability. The Mori Seiki DuraTurn 2050MC blends efficiency with cutting-edge features, enabling consistent productivity. Its robust construction and ease of operation make it suitable for both small and large-scale production.
Features of the Mori Seiki DuraTurn 2050MC
-
High‑performance 2‑axis (X & Z) turning center: equipped with the Mori Seiki MSX‑504 or MSC‑504 control (also referred to as MSC‑504/III), offering intuitive operation and advanced programming capability.
-
8″ (203 mm) chuck standard, supporting maximum turning diameters of approximately 330 mm (13.3″) to 370 mm (14.5″) via swing-over-bed of ~24″ and swing-over-cross-slide up to ~19″.
-
Turning length between centers of approximately 430–530 mm (17.1″ to 20.8″), depending on configuration.
-
X-axis travel around 215–215 mm (8.3–8.5″) and Z-axis travel around 570 mm (22.4″); both axes offer rapid traverse speeds up to ~945 ipm (24 m/min).
-
Spindle: A2‑6 spindle nose with about 73 mm bore, capable of up to 4,000 rpm, driven by a roughly 18 hp (13–14 kW) motor for strong cutting in mid‑size parts.
-
12-station high-speed turret, with indexing times around 0.25 seconds, supporting quick tool changes and multi-tool sequences on the same part.
-
Programmable tailstock, often with taper MT‑4 and ~80 mm quill travel and diameter, allowing support for longer parts or bar feeding operations.
-
Rigid tapping capability, coolant system, chip conveyor, automatic tool presetter, PCMCIA card slot or RS‑232 port, foot‑switch and leveling pads—found on many configured units.
-
Optional bar‑feed capability for lights‑out or automated part loading, particularly adapted for small batch or production runs.
-
Robust construction: machine weight approximately 8,500–9,500 lbs (3,800–4,300 kg), footprint around 2.2 m × 1.8 m × 1.7 m.
