M29
Small Diameter, Big Performance

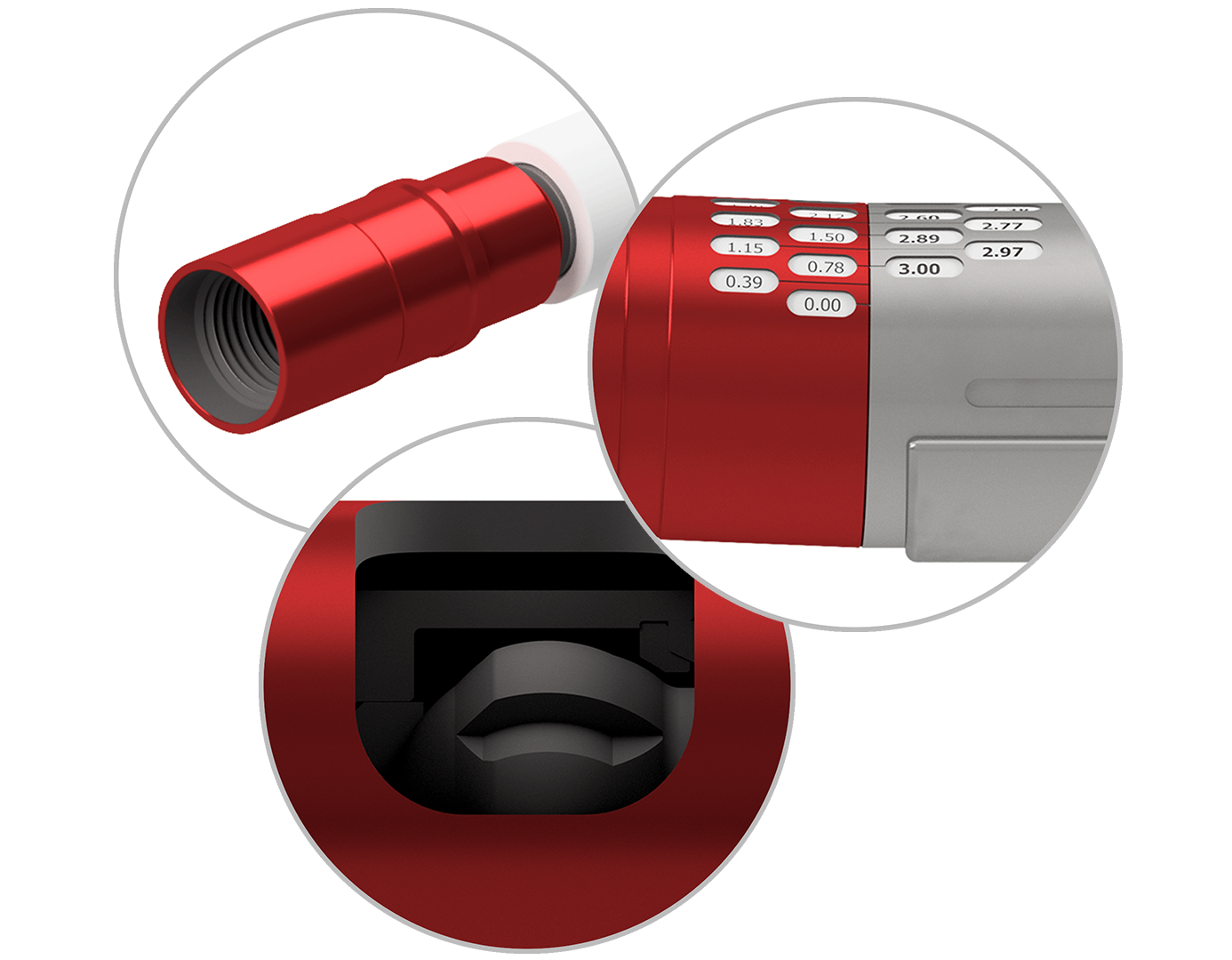

Our newly designed 2 ⅞” M29 with adjustable bend housing offers thru tubing drillers more flexibility than ever before.
- High quality build with adjustable bend housing handles all directional applications
- Robust internal mandrel with 180gpm max flow rate
- Integral threaded mandrel catch
- High allowable weight-on-bit and load capacities
- Mud lubricated bearing assembly
- Full-flex, hybrid flex and double articulating driveline options
- Full-flex drivelines available in steel or high-performance titanium
Specifications – Imperial
Swipe sideways to see all columns →
| Operating capacity | Static capacity | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Series reference | Nominal OD (in) | Hole size (in) | Bit box thread (API) | WOB (lb) | Max bit overpull (lb) | Torque (ft-lb) | Flow rate (gpm) | WOB to re-run (lb) | Bit overpull to re-run (lb) | Absolute body overpull (lb) | Torque (ft-lb) | Adjustable makeup torque (ft-lb) |
| S39 Oil Sealed | 2 ⅞ | 3.50 – 4.50 | 2 ⅜ PAC | 11,500 | 11,500 | 1,100 | 180 | 40,900 | 40,900 | 106,000 | 1,800 | 1,500 |
| 3 ⅛ | 3.75 – 4.50 | 2 ⅜ Reg | 16,000 | 16,000 | 1,400 | 180 | 61,500 | 46,000 | 127,000 | 1,800 | 4,500 | |
| S29 Mud Lube | 2 ⅞ | 3.50 – 4.50 | 2 ⅜ PAC | 15,200 | 15,200 | 1,100 | 180 | 59,000 | 42,000 | 106,000 | 2,200 | 2,500 |
| 3 ⅛ | 3.75 – 4.50 | 2 ⅜ Reg | 16,000 | 16,000 | 1,400 | 180 | 61,500 | 46,000 | 134,000 | 2,200 | 4,500 | |
Specifications are based on as-new condition and are subject to change without notice. Motor assemblies are available in a multitude of speeds and configurations.
Specifications – Metric
Swipe sideways to see all columns →
| Operating capacity | Static capacity | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Series reference | Nominal OD (mm) | Hole size (mm) | Bit box thread (API) | WOB (daN) | Max bit overpull (daN) | Torque (N·m) | Flow rate (lpm) | WOB to re-run (daN) | Bit overpull to re-run (daN) | Absolute body overpull (daN) | Torque (N·m) | Adjustable makeup torque (N·m) |
| S39 Oil Sealed | 73 | 89 – 114 | 2 ⅜ PAC | 5,100 | 5,100 | 1,500 | 700 | 18,200 | 18,200 | 47,000 | 2,400 | 2,000 |
| 79 | 95 – 114 | 2 ⅜ Reg | 7,100 | 7,100 | 1,910 | 700 | 27,400 | 20,500 | 56,000 | 2,400 | 6,100 | |
| S29 Mud Lube | 73 | 89 – 114 | 2 ⅜ PAC | 6,800 | 6,800 | 1,500 | 700 | 26,200 | 18,700 | 47,000 | 2,940 | 3,400 |
| 79 | 95 – 114 | 2 ⅜ Reg | 7,100 | 7,100 | 1,910 | 700 | 27,400 | 20,500 | 60,000 | 2,940 | 6,100 | |
Specifications are based on as-new condition and are subject to change without notice. Motor assemblies are available in a multitude of speeds and configurations.
