Vibration Reduction and Better Drilling

When drilling through tough, hard rock formations and/or using aggressive hammer drilling tools, additional vibration can occur and cause excessive stress to drill bits.

The Wenzel Shock Tool helps reduce bit vibration without lifting the bit from its point of contact. Results include better bore holes, increased rate of penetration (ROP) and extended life of bottom-hole assembly (BHA) equipment.

A pair of large OD Shock Tools on a wheeled cart outside the Wenzel Industries manufacturing facility.

Feature overview

  • Reduces bit vibration in hard formations
  • Protects MWD equipment and extends life of BHA
  • Reliable disc springs provide optimum load/deflection characteristics to maintain consistent contact between bit and formation
  • Low friction torsional drive permits free vertical movement
  • Well-stabilized, with internal three-point lateral support to minimize deflection
  • Pressure balanced to eliminate effects of hydrostatic pressure and pump open forces
  • Quality materials and few moving parts make it the most durable shock tool on the market
  • Simple design makes it easy to maintain and the most cost-effective tool on the market
  • Fully oil sealed and lubricated for extended service life
  • Does not use temperature-sensitive elastomers for shock absorption; therefore, suitable for use in temperatures up to 250ºF (120ºC) or 320ºF (160ºC) when dressed with optional high temperature seals
  • Automatically compensates for pump open force

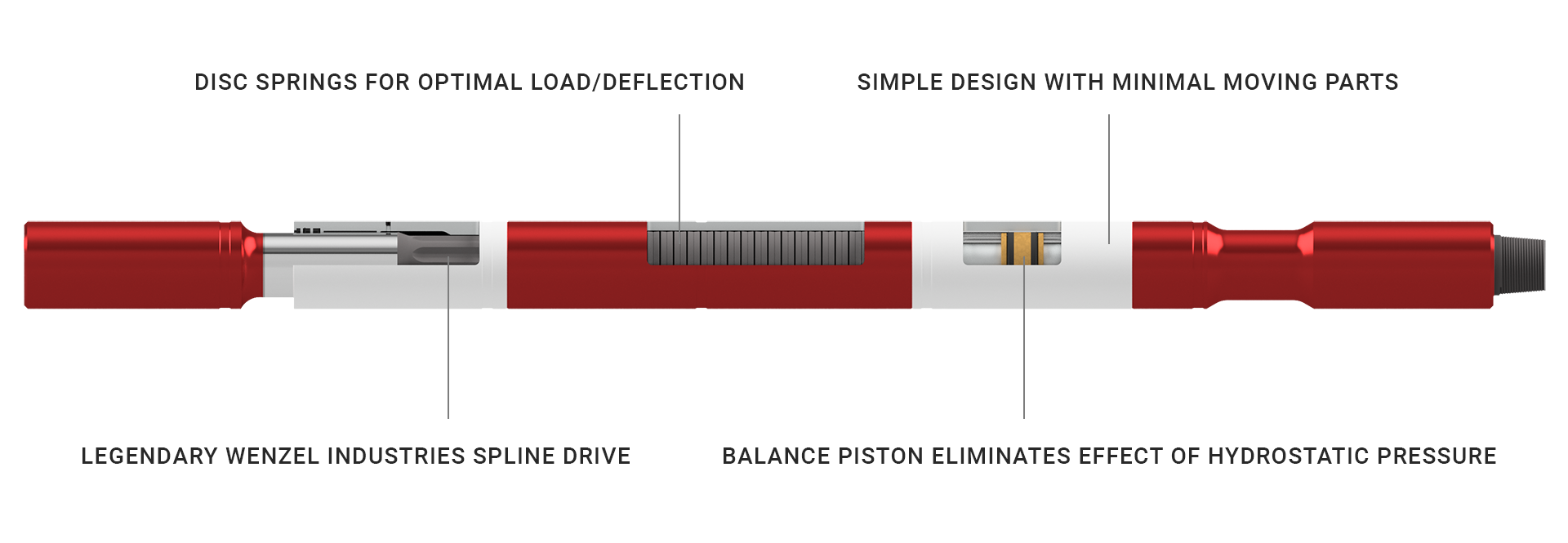

A labeled diagram of the Wenzel Industries Shock Tool with exposed internal components.

Specialized Variations

When properly configured and positioned, our Shock Tool becomes essential to the performance of your BHA. In particular, we offer two unique variations of our Shock Tool for specific applications.

V-Series Shock Tool

The V-Series Shock Tool is designed for use with our UltraVibe Axial Vibration Tool valve assembly. When the two tools are used in tandem, the V-Series Shock Tool helps spread the axial vibrations created by the UltraVibe further along the drill string. By smoothing out and lengthening these vibrations, axial shock loads can be reduced by up to 20% while drilling power increases.

Strategic placement of the UltraVibe / Shock Tool combination can reduce drag along well bore, improve weight transfer to bit, increase ROP and extend capability for longer horizontal wells.

  • Produces axial oscillation that spreads vibration along the drill string
  • Higher spring rate for larger tension/compression operating range
  • High pump open area
  • Integrated top flex sub with custom Mod IF double shoulder connection

Series 8 Shock Tool

The Wenzel Industries Series 8 Shock Tool was designed specifically for our customers in the Middle East who engage in deep vertical gas well drilling.

  • Low pump open area
  • Custom Mod IF connections
  • Allows for massive torque and aggressive drilling
  • Currently available with 12″ outside diameter (OD) housing

Hydraulic Mechanical Jars

Our hydraulic mechanical drilling jars provide the reliable hydraulic performance of our other jars with an added mechanical latch that eliminates unexpected jarring during operation and handling.

Jar Placement Utility

The Jar Placement Utility is a software application developed in-house by Wenzel engineers to help drillers optimize the placement of their drilling jars and hydraulic accelerators based on the specific parameters of their run.

Accessories and Customization

Wenzel Downhole Tools M40 mud lubricated bearing assembly with hybrid flex shaft driveline

Different formations, depths and prognoses make a one-size-fits-all approach to drilling tools impossible. Outfit your motor with the housings, driveline, bend and connections that you need for success.
